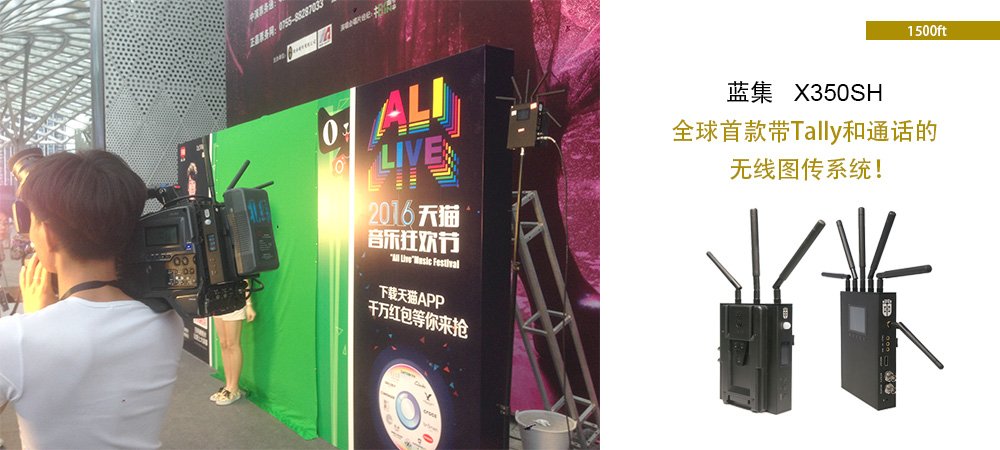

全球首款广播级无线讯道图传带有TALLY 和通话功能！
拥有一套高清无线讯道图传，你能体会1080p全高清影音在摄像机与导播台切像台之间带来无线传输的乐趣，摆脱物理线材连接的烦恼。这能将您带入影视讯道无线全新领域，无需任何技术经验要求。图传芯片使用的是同世界顶级图传芯片厂商AMIMON同款芯片，Amimon的视频解决方案是采用MIMO和OFDM技术，而这种技术允许联合信源信道编码，在40MHz带宽上传输全高清无压缩视频。这种多进多出或是（MIMO）技术，就是在发射机和接收机上采用多根天线来提高通信性能。
MIMO技术可以不需要额外带宽或是增加发射功率情况下能够显著提高数据吞吐率和连接范围。为了达到这个效果，在传播相同总量发射功率时通过多根天线达到阵列增益，提高频谱效率（每赫兹带宽每秒更多比特量）或实现分集增益从而提高连接可靠性（降低衰退），由于这些特性,mimo(多输入输出天线系统）是现代无线通信标准的一个重要组成部分,例如IEEE 802.11 n(Wifi),4 g,3 gpp长期演进,WiMAX,HSPA +和- WHDI。
由于空间复用技术使得接收机非常复杂，MIMO通常与正交频分复用或OFDM调制组合，其中由多径信道产生的问题被有效地处理，WHDI标准合并了MIMO-OFDM（相比之下，IEEE 802.16e标准合并了MIMO-OFDMA;并且IEEE 802.11n标准建议了MIMO-OFDM）。
Amimon的MIMO实现允许4x5或2x5 MIMO信道模型。
这意味着发射机通过多个发射天线发送多个流（两个或四个）。 发射流经过矩阵信道，矩阵信道由发射机的发射天线与接收机的接收天线之间的所有可能路径组成。 然后，接收机通过五个接收天线获得接收信号向量，并将接收信号向量解码为原始信息。
使用五个接收天线允许接收机选择五个接收信号中的“最佳”四个来求解信道的矩阵。
本款无线讯道图传除了配备全球顶级无线图传功能外 还具备 双色TALLY 和全双工无线通话功能 ！能够轻松取代传统有线讯道图像传送方式。可现时接入导播台和切像台。多套无线讯道可同时与导播台组建临时导播局域网，摄像师与导播，摄像师与摄像师之间可以通话。

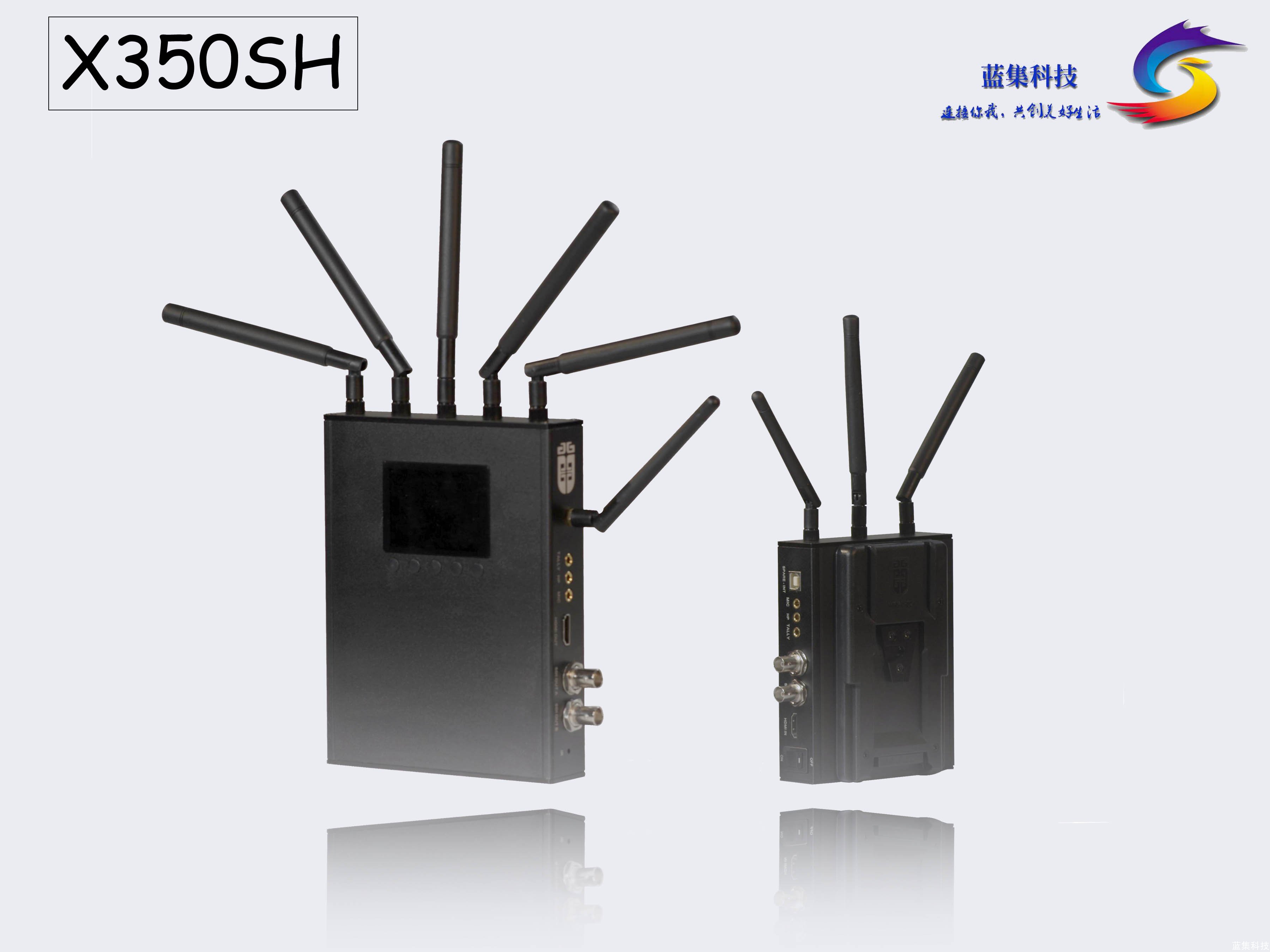

X350SH无线讯道图传提供您所需的一切，发送完整的1080p视频，环绕声音频，传送达1500英尺。它提供了一个强大的信号，可以穿过发射器和接收器之间的多个墙壁和障碍物。
◾完全兼容最新的3D，5.1环绕声和1080p高清影视。它使用未压缩信号在多个房间提供内容，没有任何质量损失。
◾当您有多套无线讯道同时使用时，可设定每套讯道使用的频率，使之互不干扰。
◾最远可传送1500ft，所以不论在什么地方使用可以完全取代有线传送方式。但请记住，如果发射器和接收器之间有钢梁，砖或混凝土，无线传送的范围会缩短。
◾这套设备除了影视使用外 还可用于家用和办公，除了广电接口还带有HDMI接口，所以可连接家用设备如 电脑 电视等。
Robust and Reliable Technology

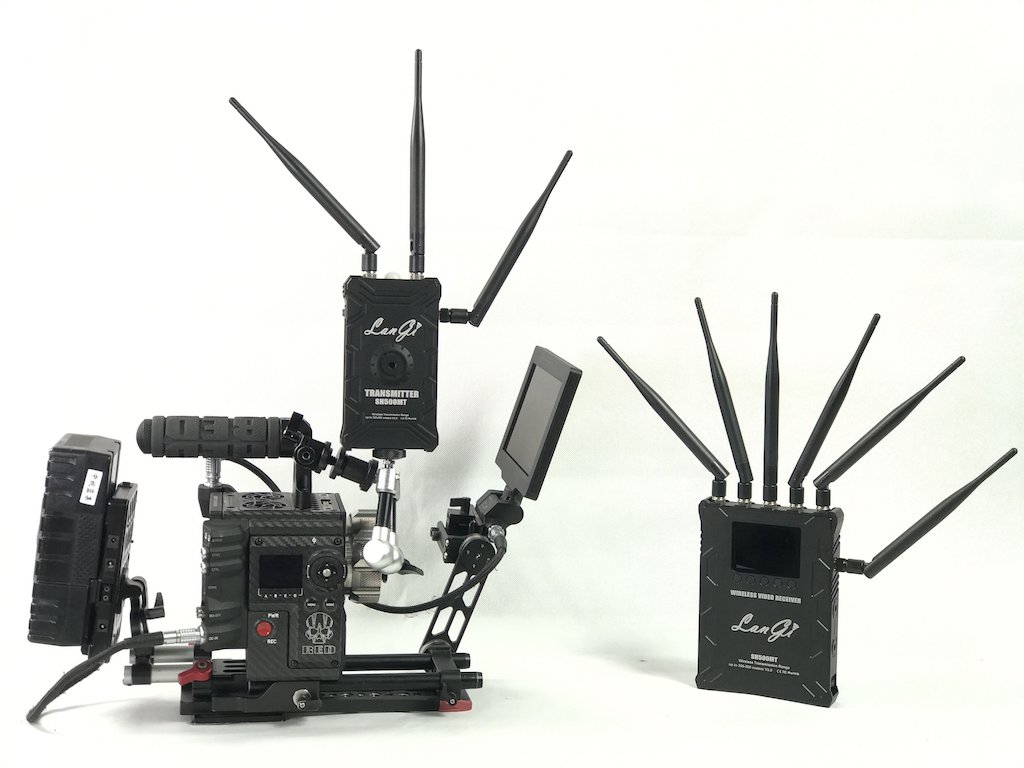

Lanji designs and markets high-end wireless SDI HDMI video link systems for professional broadcast camera and movie camcorder teams. Our innovative technology provides portable and high-quality video transmission systems for broadcast camera / movie camcorder and production teams around the globe. Our systems are used in outdoor applications such as news, sports, reality shows, live events, OB vans and movie video assist.
Lanji's solutions utilize a robust Mimo+OFDM technologies to guarantee wireless coverage even in the most difficult scenarios. This technology, allow for the magic of Joint Source Channel Coding (JSCC) capability to transmit full uncompressed 1080p60 HD video resolution over a bandwidth of 40MHz. The multiple-input and multiple-output, or MIMO, is the term used for multiple antennas at both the transmitter and receiver to improve communication performance.
In addition,Lanji transmits visually lossless 4:2:2 video over the unlicensed 5GHz band at less than 1 millisecond of delay. Lanji’s new firmware ensures your system reaches its full potential right out of the box. We’ve also improved reconnect times so your wireless link is restored instantly when you come back into range., along with wireless radio enhancements (extended range, security and quality), is ideal for broadcasting market or mieve shooting needs and requirements.
40MHz channels allow your wireless system’s single transmission more robust and influent in challenging RF conditions. Video enbeded audio transmission, video format supports up to 1080p60/50 frame rates, PSF.
The system's unique algorithms are specifically designed to merge video and wireless technologies in order to deliver superior video quality, robustness, and stability.The system except 5G wireless video transmission function ,also embeds 2.4G wireless Itercom and Tally features, It provides an excellent range up to 1500ft as well as no latency and uncompressed .
Thanks to its robust and reliable technology, Lanji’s product-line has been successfully employed by broadcasters and film-makers around the world.
Lanji's technical advantages:
• Robust and reliable MIMO-OFDM wireless link
• LED screen display and control all program’s configuration
• No Latency Uncompression – broadcast quality (47 dB PSNR)
• Up to 1500ft range
• Resolutions – 3G/HD up to 1080p (NTSC/PAL/PSF)
• Embedded Intercom and double colour Tally
• Unlicensed frequencies (4.9 Ghz-5.875 Ghz)
• Low power consumption (10 W)
• 10 Channels to choose
• All functions are realised by broadcast chips.
|
|
发射端TX
|
接收端RX
|
|
视频支持格式
Resolution
|
1080p60/59.94/50/30/29.97/25/24/23.98/24psf/25psf
1080i 50/59.94/60
720p60/50
480p60
480i(NTSC)/576Ii(PAL)
SDI:3G,HD,and SD-SDI(自动选择)
|
|
输入
Input
|
1 x 75 Ohm SDI 插孔
1 x A规 HDMI
1 x 3.5mm 麦克风插孔
|
1 x 3.5mm 麦克风插孔
1 x 3.5mm Tally 插孔
|
|
输出
Output
|
1 x 75 Ohm SDI插孔（环出）
1 x 3.5mm 耳机插孔
|
2 x 75 Ohm SDI 插孔
1 x A规 HDMI
1 x 3.5mm 耳机插孔
|
|
延迟 Delay
|
<1ms
|
|
音频格式
Embedded audio format
|
SDI embedded 24 bit/48KHz PCM
|
|
频率 Video Frequency
|
5.1-5.9GHz,适用于中国，美国，欧洲等
|
|
视频发射功率
5.8G Video RF
|
17dBm
|
|
2.4G发放功率
2.4G RF
|
18dBm
|
|
传输范围
Coverage
|
最远可视范围1500英尺 Up to 1500ft in line of sight
|
|
加密方式
Encryption Format
|
AES-128
|
|
干扰抑制
Noise rejection
|
能与WIFI 和5GHz 无线电话共存 Coexit with WIFI and 5G phone
|
|
输入电压
Input Voltage
|
9-18V DC
|
9-18V DC
|
|
功率(1080p60)
Power consumption
|
<8.5 watt
|
<9.5 watt
|
|
显示屏 LED screen
|
1.3 inch
|
2.6 inch
|
|
耳机频率
Intercom Frequency
|
2.4-2.4835GHz
|
|
带宽
Band
|
40MHz
|
|
工作温度
Work temperature
|
-10~50°C
|
|
无线导播
Intercom
|
1、3.5mm 无线输出孔
2、LED指示灯
|
导播状态显示在OLED屏上
|
|
耳机接口
Headset jack
|
3.5mm 麦克风接口
3.5mm 耳机接口
|
|
模式 Pair
|
一对多 One to multiple
|
一对一 One to One
|
|
尺寸 Size
|
(长 x 宽 x 高):135x 69 x 150mm
|
(长 x 宽 x 高):155x 55 x 181mm
|
|
重量 Weight
|
800g
|
800g
|
|
升级 Update
|
通过mini-USB升级
|
|
可安装性
Installation
|
SONY
V型电池扣板 V-mount battery plate
多选择 1/4"专业固定螺丝孔 1/4 screw hole
|
|
|
|
|
|
